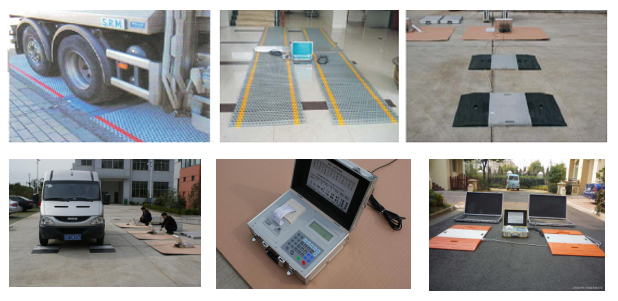

Wired Portable WIM System

1.The portability is largely increased.

2.Ultra high frequency ensures better anti-electromagnet ability.

3.Double LCDs are used.

4.Display date and time,truck no and ticket no are manually input.Battery voltage monitor is indicated and alarm can be generated.

5.Measure and display vehicle velocity(km/h).

6.Floating technoloty is adopted to remove zero drift.

7.Numbered options.

8.Vehicle axle weight is measured axle by axle,and the max number is unlimited.

9.Micro printer is embedded in the indicator,the print ticket contains date,time,truck no,ticket no,axle weight,joint axle weight,truck weight,overload executive organization.

10.RS232 port is used to communicate with PC.

11.Long life-span storage battery ensures long-time operation in field.

12.In static mode,customer and cargo no can be input

13.Max stored records are up to 300,and can be expanded to 1000.

Application

1.weighing and load control of loading truck in road transportation,construction,agriculture,forestry,and dustbin disposal.

2.weighing of loading truck by executive enforcement units

3.test weight and center of gravity of aero-plane

4.weighing automobile wheel and axle load distribution in automobile production line

5.stability test of special automobile,such as fork-lift truck,crane

Main Technical Index

1.Weigh pad

 Ⅰ.dimension:800x350x22mm

 Ⅱ.weight:28kg

 Ⅲ.height:22mm

a)dimension:430x335x190mm

b)weight:10kg

c)wheel weighing span:0~20T

d)axle weighing span:0~40T

e)total weighing span:1~200T

f)axle weight display:0~99995kg

g)total weight display:0~999995kg

h)display unit height:13mm

Ⅰ.128x64 dot matrix display,16 pages of functional options

 Ⅱ.24 bit high-conversion ADC,conversion velocity is up to 1000/s

 Ⅲ.analogue vonversion division:0.5uV

Ⅰ)accuracy

Ⅰ.Static( for reference)

1)①≦20%FS,±0.3%F.S

2)②>20%FS,±0.5%f.s

Ⅱ.dynamic(<15km/h)

1) ①≦20%FS,±1%F.S

2) ②>20%FS,±3%F.S

3.vehicle moving velocity:0~15km/h

4.weighing pad power suppliy:6V DC.1A

5.operation temperature:-10℃~60℃

6.relative humidity:90%
