Crane Scale
H4 series crane scale
Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, operate through remote controller ,etc functions.
User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.
Specification:
| Standard | According to OIML class III | ||||
| Display | 30mm (1.2’’) 5digits LCD/LED | ||||
| Zero Range | 4% F.S. | ||||
| Tare Range | 100% F.S. | ||||
| Stable Time | ≤10seconds | ||||
| Overload Indication | 100% F.S. + 9e | ||||
| Max. Safety Load | 125% F.S. | ||||
| Ultimate Load | 400% F.S. | ||||
| Battery Life | ≥50 hours | ||||
| Battery Type | Fully sealed Lead-Acid battery, 6V/4.5Ah | ||||
| Adapter | DC9V/1000mA | ||||
| Operating Humidity | ≤85% RH under 20℃ | ||||
| Remote Controller Distance | Min. 15m | ||||
| Battery of Remote Controller | AAA battery, 1.5V×2 | ||||
MODEL | Max. capacity(kg) | Min. weigh(kg) | Division(kg) | Total dispay counts(n) | |
| HS-2 | 2000 | 20 | 1 | 2000 | |
| HS-3 | 3000 | 20 | 1 | 3000 | |
| HS -5 | 5000 | 40 | 2 | 2500 | |
| HS -10 | 10000 | 100 | 5 | 3000 | |
| HS -15 | 15000 | 200 | 5 | 3000 | |
| HS -20 | 20000 | 200 | 10 | 2000 | |

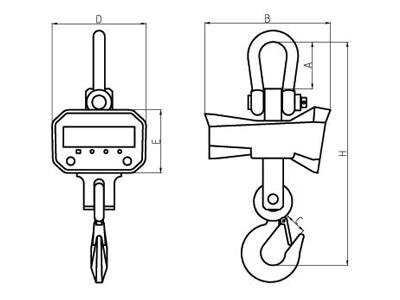

| MODEL | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W.(kg) |
| HS -2 | 95 | 260 | 33 | 195 | 135 | 430 | 10.5 |
| HS -3 | 95 | 260 | 40 | 195 | 135 | 455 | 11.5 |
| HS -5 | 120 | 325 | 50 | 240 | 165 | 535 | 17.5 |
| HS -10 | 124 | 325 | 60 | 240 | 165 | 660 | 27.5 |
| HS -15 | 225 | 345 | 70 | 240 | 165 | 855 | 49 |
| HS -20 | 225 | 345 | 85 | 240 | 165 | 920 | 56 |
